Euromex DC.10000-P



tax excl.

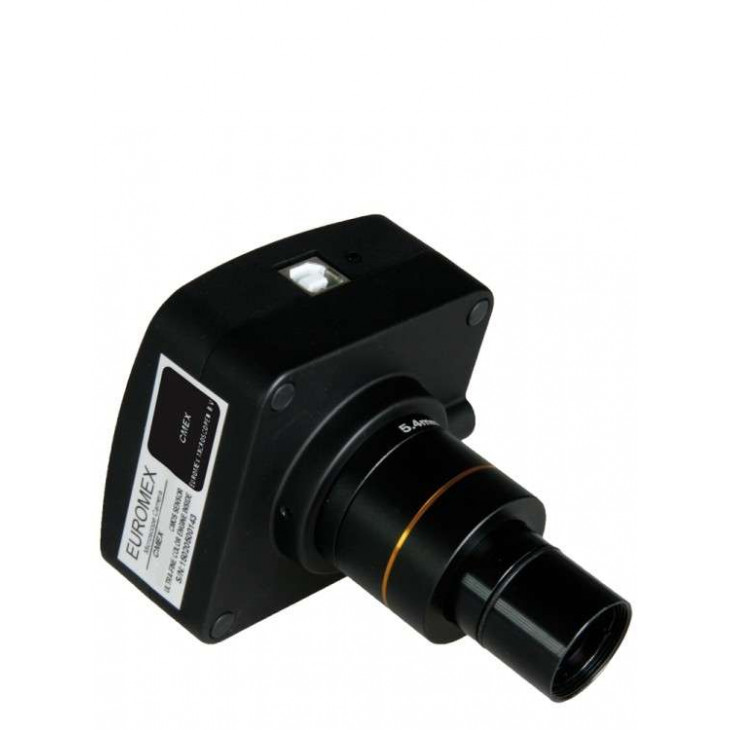

Digital photo camera Euromex DC.10000-P. 10 MPx. 3584 x 2746 pixels. Mount and attach in the thread. USB 3.0 connection. Balance and exposure automatic or manual. Includes USB cable and CD ROM with software, Image Focus Alpha.

Do you want a quotation or have questions? Contact us

+34 919 29 15 86 Whatsapp
Add to wishlist
Add to compare
Order on demand


CMEX-10 Pro (DC.10000p)

CMOS Sensor 1/2.3"
Pixels 3584 x 2746 pixels, 10.0 Mp.
Type is Progressive scanning, type blind.
Pixel size 1.67 µm x 1.67 µm
RGB filter
Mount Screw-type "C" .
Frames/second 7.2 frames per second working on resolution 3584 x 2746 pixels.
24.5 frames per second working in resolution 1792 x 1372 pixels.
ADC 12-bit
Depth colour 24-bit
Auto exposure or manual.
White Balance Auto or manual.
Dynamic range 63.5 db
Signal/noise ratio 35.5 db
Sensitivity 0,31 V/lux-sec
USB 3.0 at 5Gb/s.
Dimensions 68 x 68 x 45 mm (width x deep x high)
Working conditions 0 – 50° C, 30-80 % humidity
Storage conditions -20 – 60° C temperature
Power supply 5V by USB port
Supplied with Adapter to C mount with factor 0.5 x is compatible with 23,2 mm diameter. Adapters for 23.2 mm diameter at 30 and 30.5 mm diameter. USB 3.0 Cable, calibration 76 x 24 mm with graticule 1 mm/100 parts, CD ROM with program (ImageFocus Alpha) and drivers, cardboard box.
Reference DC.10000p
System requirements Processor INTEL Core 3.7 Ghz, RAM at least 2 Gb, CD-ROM drive, USB port 3.0 and a screen of at least 17 inches.
