Analytical HPLC ECOM
Brand New
  • Analytical HPLC ECOM
  • autosampler L3320
  • gradient box ECB2004
  • Column oven-ECO2080
  • ECD2800 UV-VIS detector
  • ECP2010 Analytical HPLC pump
  • gradient graphs
  • Software Clarity
GMN001
Brand new equipment | Chromatography | HPLC
ECOM
Analytical HPLC
ECOM
25.572,00 €
Taxes excluded
Icon
2 año garantía

2 year warranty

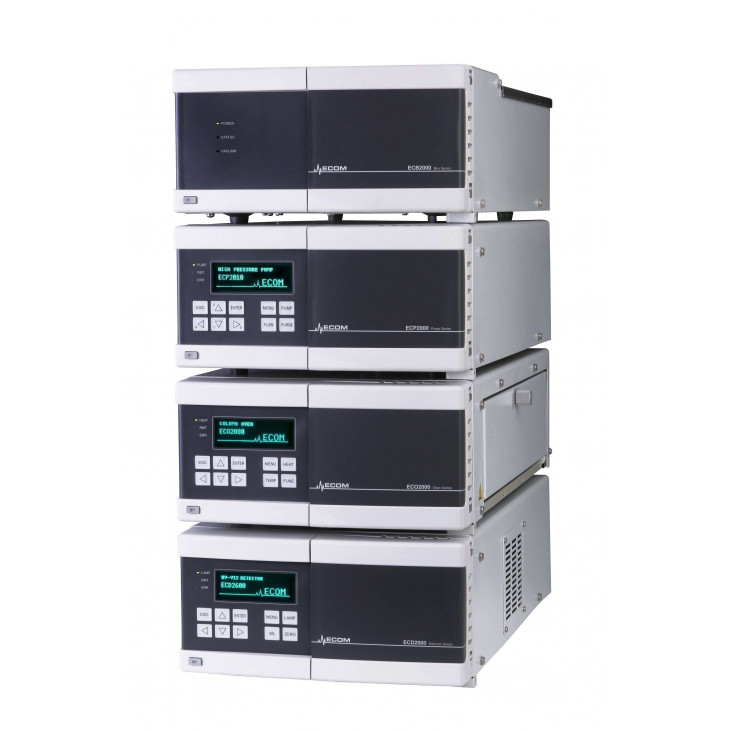

HPLCs analytical Ecom 2000 Series. Selectable modules: detector UV-VIS (ECD20800) or PDA (ECDA2800), autosampler for 96 vials (L3320), pump isocratic flow of 10 ml/min, modulus of gradient with degasser (ECB2004), column oven with heating/cooling (ECO2080) or single heating (ECO2099). Software Clarity for control and data acquisition and processing. The marked price corresponds to the setting ECS05, see prices below for other configurations.

Qty

SETTINGS STMAS ANALYTICAL

PRICES SYSTEMS LABORATORY

Detectors

ECDA2800 PDA. Analytical Detector diode arrray. Measures eight wavelengths simultaneously, or performs a full sweep at a rate of 100 Hz. Range of wavelength 200 to 800 nm. Support for 3D through software Clarity. Noise level ±5x106 AU. Controlled by keyboard or software Clarity.

ECD2800/ECD2600 UV-VIS. Detector UV-Vis with the longitude of wave variable in the range of 190 to 800 nm (up to 600 in the case of ECD2600). Automatic calibration. Noise level ±3x106 AU. Controlled by keyboard or software Clarity.

Pump

EPC2010/ECP2010H. It works as a pump isocratic but along with the module of gradient (ECB2004) can function as a pump gradient. Two heads connected in series with a piston diameter of 1/8”. Flow range 0.02 to 10 mL/min.

Column oven

ECO2080/ECO2099. Column oven heating/cooling by Peltier. Temperature range 0 to 80 ° C (99 ° C in the case of ECO2099). Accommodates up to 3 columns of 25 cm, Controlled by keyboard or software Clarity.

Module gradient/degasser

ECB2004/ECB2004PC. Module liquid handling, degassing and creation of gradients from up to 4 solvents.

Autosampler

L3320. Autosampler for 96 vials with excellent accuracy and linearity. Innovative needle that reduces pollution. Wide range of volumes from microliters without loss of sample.

Brand New

Download

Brochure

Sistemas analíticos HPLC ECOM

Download (2.24M)
