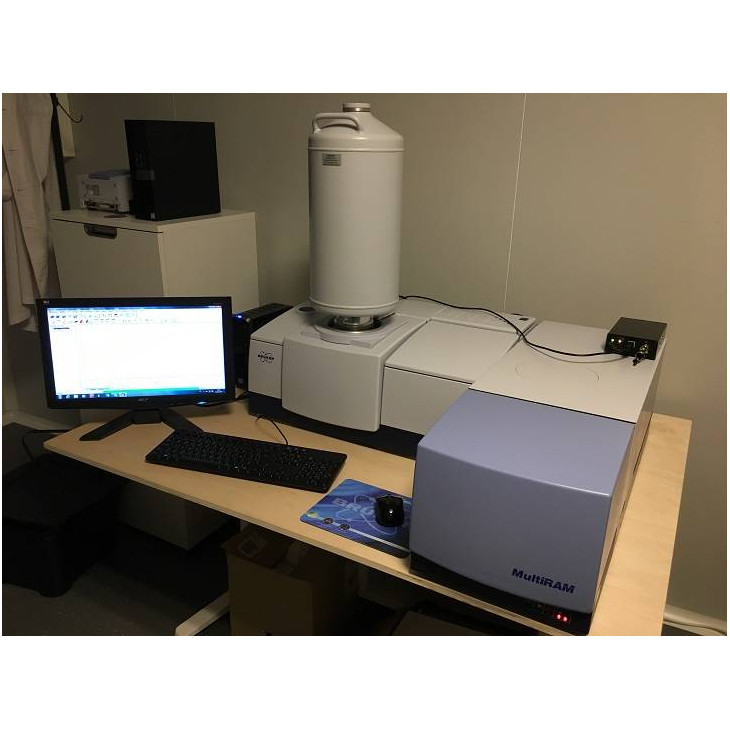

Bruker MultiRam FT-Raman spectrometer

Combine advanced digital electronics with Bruker’s high quality optics and you have the ultimate in a high performance FT-Raman system. The intuitive, easy-to-use OPUS software controls all data collection and manipulation functions for the MultiRAM. The real-time spectrum display permits software control of the analysis conditions, including optimization of the laser power and the sample position.

High Performance

The MultiRAM configuration provides a spectral range of 3600 – 50 cm-1 (Stokes shift). The heart of the MultiRAM is Bruker’s patented interferometer with gold coated optics and permanent RockSolidTM alignment, which provides the superb stability and throughput required for demanding emission experiments, as it is the case for Raman spectroscopy.

Sampling Flexibility

The large sample compartment is easily accessible from 3 sides and features switching to 90° scattering geometry, and defocusing optics which are essential for successful analysis of samples sensitive of thermal heating. A motorized sample stage for optimization of the sample position , and a white light source to correct the spectra for instrument responses are included in the standard configuration of the MultiRAM. Additional sampling accessories, such as automatic sample changers, low and high temperature stages are optional.

Sensitivity and Stability

Equipped with a broad band quartz beamsplitter, Bruker’s patented and frictionless RockSolid interferometer guarantees highest sensitivity and stability. The Nd:YAG laser sample excitation source (1064 nm) is fully software controlled. High throughput optics and Bruker’s unique liquid nitrogen cooled Germanium diode detector offers ultra-low signal detection with minimal noise assuring excellent sensitivity. The long hold time of the refrigerant provides hassle free operation for an entire week.
